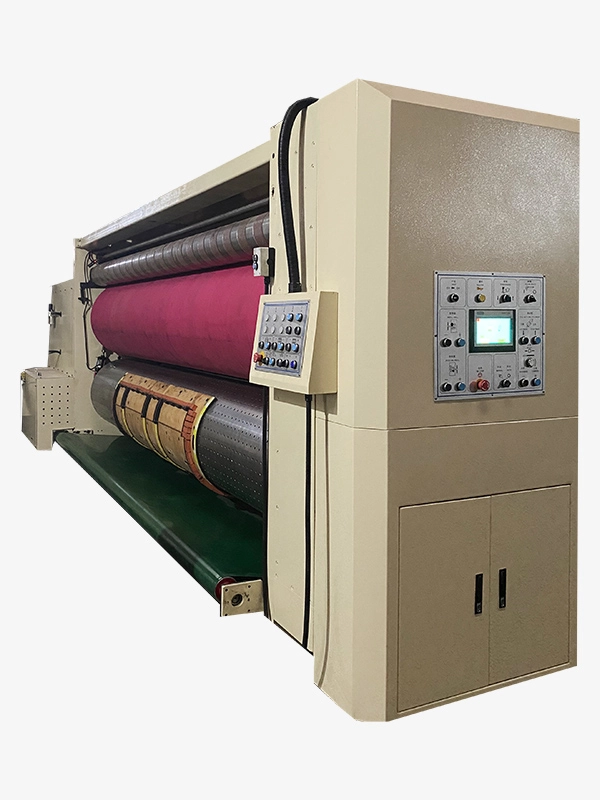

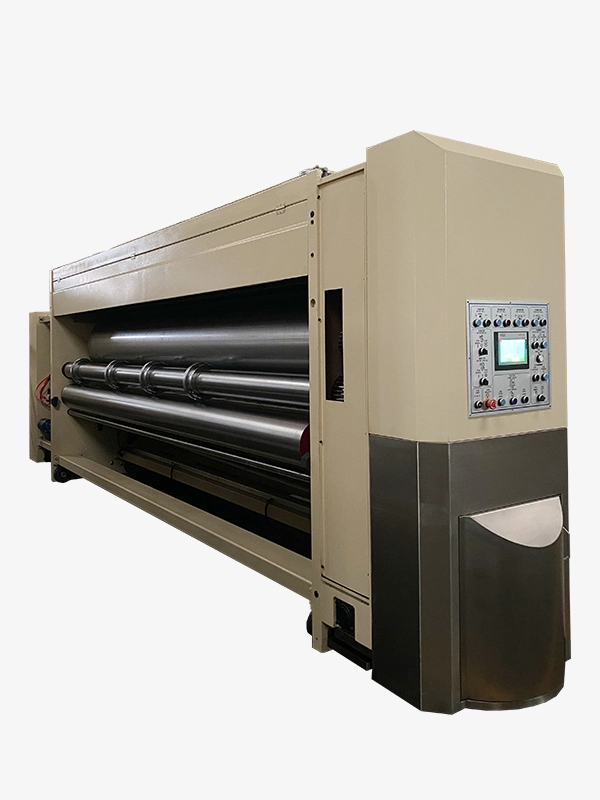

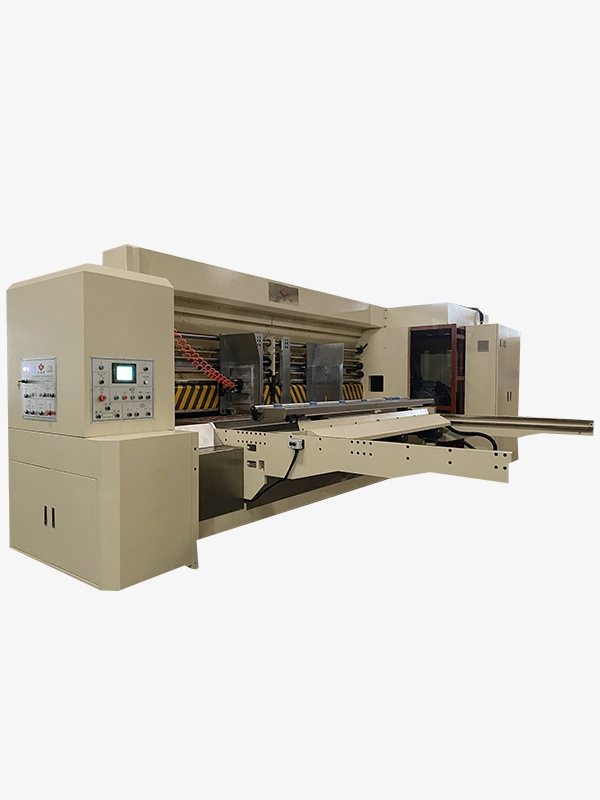

Computerized Jumbo Corrugated Carton Box Flexo Printing Slotting Die-Cutting Machine
Introducing the Keshenglong Computerized Jumbo Corrugated Carton Box Flexo Printing Slotting Die-Cutting Machine – your top choice for precision and efficiency in packaging solutions. Engineered to deliver high-quality outputs, this advanced Flexo Printing Slotting Die-Cutting Machine enhances production processes, ensuring accuracy and consistency. Optimize your operations and improve productivity with its user-friendly interface and robust construction.
standard
1. One-button operation function(test printing with one sheet, regular production can be done).
2. Equipped with remote diagnosis and maintenance function.
3. This machine is designed and made to high quality and safety standard, with the advantages of high speed, auto control and quick shift.
4. Adopt high quality material and parts. All electronic components comform to CE standard, and safety standard can equal European.
5. Well hardened and ground transmission gear, hardness>60 HRC.
6. All zero return and auto reset.
7. Use expansion sets tight link to reduce abrasion of the shaft, keep precision of the machine for longer time.
8. All cylinders and rollers are chromed plated for ideal hardness.
9. PLC control system with touch screen control.
10. Able to save orders, speed up the order shift.
11. Automatic inline flexo folder gluer or flexo folder gluer & stitcher for bottom printing(bottom printing up folding)is optional.
12. Able to connect to the ERP production management system.(Optional)
detail
Specification
Data/Model | 1600x3600 | 2200x3600 | 2200x4000 | 2200x4500 | 2200x5300 | 2600x3600 | 2600x4000 | 2600x4500 | 2600x5300 |
Max.Machine Speed (pcs/min) | 120 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 |
Max.Feeding Size (mm) | 1570x3600 | 2100x3600 | 2100x4000 | 2100x4500 | 2100x5300 | 2500x3600 | 2500x4000 | 2500x4500 | 2500x5300 |
Min.Feeding Size (mm) | 450x740 | 550x880 | 550x900 | 550x900 | 600x880 | 650x980 | 650x980 | 650x980 | 650x980 |
Max.Printing Area (mm) | 1580x3600 | 2080x3600 | 2080x4000 | 2080x4500 | 2080x5300 | 2480x3600 | 2480x4000 | 2480x4500 | 2480x5300 |
Thickness of Printing Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
Min. Panel (mm) Slot Type L. | 270x80x270x80 | 310x110x310x110 | 330x110x330x110 | 330x110x330x110 | 330x110x330x110 | 360x110x360x110 | 360x110x360x110 | 360x110x360x110 | 360x110x360x110 |
Max.Slotting Depth (mm) | 560 | 750 | 750 | 750 | 750 | 850 | 850 | 850 | 850 |
Max.Thickness of Sheet (mm) | 16 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
